| Hardware Specification |
|---|

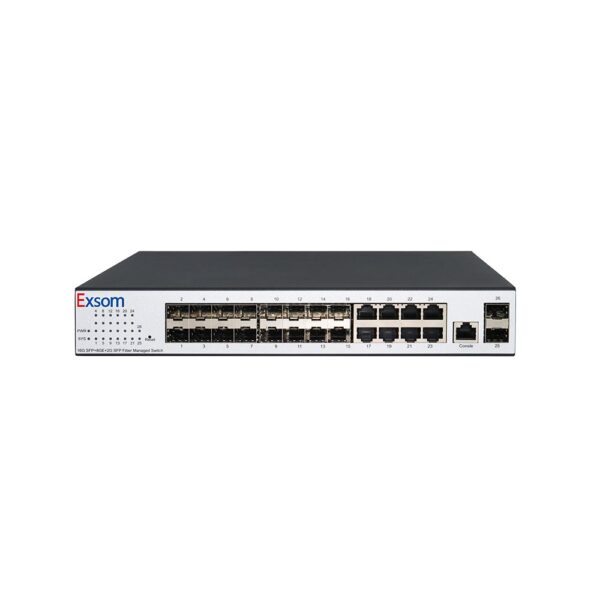

| Interface | 1*Console Port, 16*1000Mbps SFP Slots, 2*1000SFP Slots, 8*10/100/1000Mbps RJ45 ports
|
|---|
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad
|
|---|
| Network media | 1000BASE-T: UTP category 5e, 5cable(≤100m), 1000BASE-X: MMF, SMF, 100BASE-TX: UTP category 5, 5e cable(≤100m), 10BASE-T: UTP category 3,4,5cable(≤100m)
|
|---|
| Indicator | PWR(GREEN), LNK/ACT(GREEN), SYS(GREEN)
|
|---|
| MAC Address Table | 8K, Auto-learning, Auto-aging
|
|---|
| jumbo frame | 10000Bytes
|
|---|
| Packet buffer | 4.1Mbit
|
|---|
| Transfer Mode | Store-and-forward
|
|---|
| Packet Forward Speed | 38.69Mpps
|
|---|
| Switching Capacity | 52Gbps
|
|---|
| Input Power Supply | 100-240V/AC 50/60Hz
|
|---|
| Dimensions(L*W*H) | 280*180*44mm
|
|---|
| Fan Quantity | 1
|
|---|
| Green energy saving | IEEE 802.3az
|
|---|
| Operating Temperature | 0°C ~ 40 °C
|
|---|
| Storage Temperature | -40 °C ~ 70 °C
|
|---|
| Operating Humidity | 10% ~ 90% non-condensing
|
|---|
| Storage Humidity | 5% ~ 90% non-condensing
|
|---|
| Surge Protection | Differential mode ±2KV, Common mode ±4KV
|
|---|
| Electrostatic standard | Contact ±6KV, Air ±8KV
|
|---|
| MTBF | >100000 hours
|
|---|
|
| Software Specification |
|---|
| Mirror | Support one to one, multi to one, Port based mirror, support ingress, egress, and both, CPU based mirror, Flow based mirror, RSPAN
|
|---|
|
| Software Specification (Security) |
|---|
| 802.1x | Port Based Authentication, Support EAPoR, MAC based Authentication, Guest VLAN
|
|---|
| MAB | Based on Port Authentication, Based on MAC Authentication
|
|---|
| MAC Address Count Limit | Based on Port, Based on VLAN
|
|---|
| IP Address Count Limit | Based on Port, Based on VLAN
|
|---|
| Access Management | Based on source mac and IP address
|
|---|
| Deny DoS Attack | TCP Flag, TCP Flagment, IP Segment, ICMP
|
|---|
| TACACS+ | Standard Support
|
|---|
| Radius | Standard Support, Client, Support MD5
|
|---|
| SSL | Openssl 1.1.0
|
|---|
|
| Software Specification (Redundancy Related Function) |
|---|
| MRPP | Compatiable ERRP
|
|---|
| ULPP | Uplink Protection Protocol, Smart Link/Monitor Link
|
|---|
| ULSM | Uplink State Monitor
|
|---|
|
| Software Specification (L2 Features) |
|---|
| MAC Address Table | MAC Address Size, MAC Aging Time, MAC Filter, MAC Notification
|
|---|
| Basic Management | Console/Telnet/SSH, Http/Https,SSL/TLS FTP/TFTP, Syslog, SNMP(v1/v2c/v3), SNMP Trap, SNTP/NTP, CPU protect, Software/Hardware watchdog, Firmware Upgrade/Backup, Ping/Traceroute
|
|---|
| Port Config | Bandwidth Control, Flow Control, EEE, MTU, CFM (802.1ag), EFM OAM (802.3ah), DDM, Storm Control, Port Isolation, Port Security, Virtual Cable Test, ULDP/Cisco UDLD
|
|---|
| Discovery | LLDP (802.1ab), LLDP-MED
|
|---|
| Link Aggregation | Static, LACP (802.3ad), Load Balance(src-mac/dst-mac/src-ip/dst-ip), Max groups and ports per group
|
|---|
| VLAN | QinQ/Selective-QinQ/Flexible QinQ, VLAN Translation/N:1 VLAN Translation, Guest VLAN, VLAN (802.1Q 4K), Access/Trunk/Hybrid, Private VLAN, VLAN Filter, MAC-based VLAN, Protocol-based VLAN, IP Subnet-based VLAN, Voice VLAN, GVRP/GMRP
|
|---|
| Network Loop Detection | Loopback Detection, ERPS
|
|---|
| Spanning Tree | STP/RSTP/MSTP, MSTP Support 64 instance, BPDU Guard/Root Guard/BPDU Tunnel
|
|---|
| ARP | Static ARP, ARP Scanning Prevention, ARP Spoofing Prevention, ARP Guard, Gratuitous ARP, Dynamic ARP Inspection, ARP Quantity Control
|
|---|
|
| Software Specification (IPv4 Related Function) |
|---|
| ICMP | Anti ICMP Attack, ICMP Rate Limit, ICMP Unreachable Drop
|
|---|
| IP Forward | Static Route, Route Aggregation
|
|---|
| Control Multicast | DCSCM
|
|---|
| Multicast VALN | Multicast VALN
|
|---|
| IGMP | IGMP SNOOPING V1/V2/V3, Fast Leave, IGMP Proxy
|
|---|
| DHCP | DHCP Server, DHCP Client/BOOTP, DHCP Relay, DHCP Snooping, DHCP Option 82/43/60/61/67
|
|---|
|
| Software Specification (IPv6 Related Function) |
|---|
| IPv6 Basic | IPv6 ND Snooping
|
|---|
| DHCPv6 | DHCPv6 Server, DHCPv6 Relay, DHCPv6 Snooping, IPv6 SAVI, Security RA
|
|---|
| IPv6 Unicast Routing | Static Route
|
|---|
| IPv6 Multicast Routing | MLD v1/V2 Snooping
|
|---|
| IPv6 Features | IPv6 Radius+ Support, IPv6 Tacacs+ Support, IPv6 SNTP/NTP Support, IPv6 FTP/TFTP Support, IPv6 IPSec Support, IPv6 ACL, SNMP over IPv6 Support, HTTP over IPv6 Support, SSH over IPv6 Support, DNS over IPv6 Support, IPv6 ping/traceroute Support, IPv6 Telnet Support
|
|---|
|
| Software Specification (QoS (Quality of Service)) |
|---|
| Basic | Trust COS/DSCP, Trust Port
|
|---|
| Scheduling | SP, WRR, WDRR
|
|---|
| PolicyMap Stream | Based on VLAN, Based on COS/DSCP, Aggregate PolicyMap, Ingress PolicyMap
|
|---|
| Policing | CAR Stream Shaping (leak algorithm), Ingress Policing
|
|---|
| Rewrite | COS/802.1p Priority, IP Precedence, IPv4 DSCP/IPv6 DSCP, drop-precedence, internal-priority, Ingress/Egress Rewrite
|
|---|
| Queuing | DSCP to DSCP mapping, DSCP to DP mapping, DSCP to Queue mapping, COS to DP mapping, COS to Queue mapping
|
|---|
|
| Software Specification (ACL) |
|---|
| ACL Features | Based on time period ACL, ACL on VLAN, Based on ACL Stream
|
|---|
| IP-ACL | SIP/DIP, IP Protocol, IP Priority (DSCP, TOS, Precedence), TCP, UDP src,dst Port
|
|---|
| IP-MAC ACL | MAC-ACL and IP-ACL
|
|---|
| MAC-ACL | SRC/DST MAC, VLAN, COS, Tag/Untag
|
|---|
| User-defined ACL | Base on user defined profile
|
|---|
|
